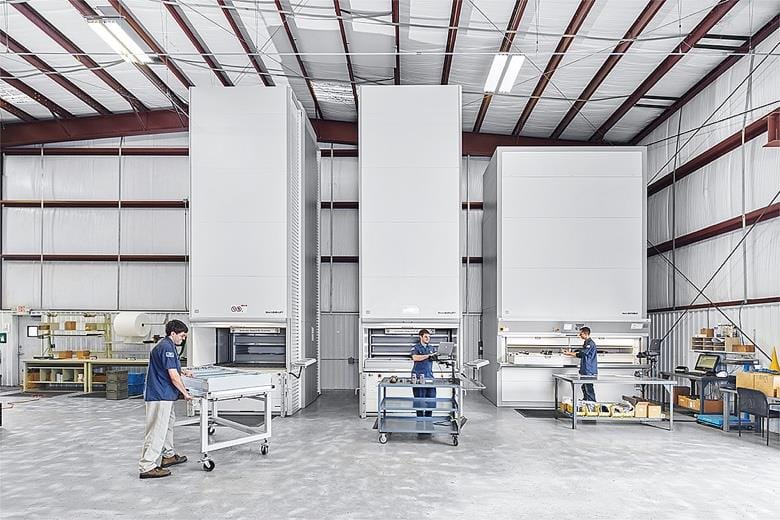

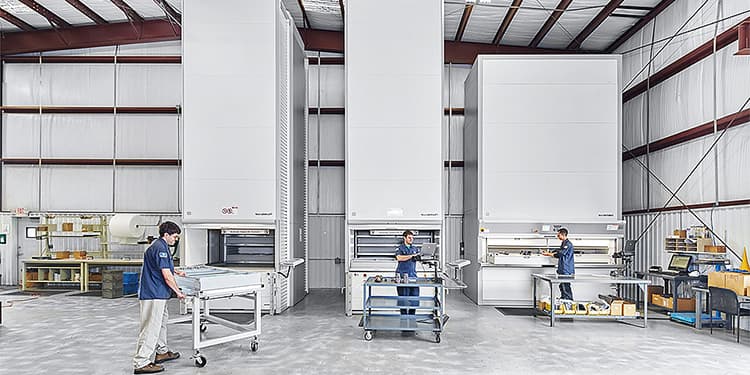

While they both store items vertically on sub-divided trays in manufacturing and warehousing, VLMs and vertical carousels operate differently.

Automated storage and retrieval systems come in different shapes and sizes to handle a variety of product shapes, sizes, weights and velocities.

Learn more about automated storage and retrieval systems and how they help a range of industries handle, store, and pick a variety of products.

Carousels are a technology used to store items for eventual picking or retrieval. There are two primary types of carousels and one related technology, all of which operate under some form of computer control. Since the late 1990s, carousels have been placed under the more general category of AS/RS. See also Horizontal Carousels , Vertical Carousels , Vertical Lift Modules and/or AS/RS .

As a storage device, a horizontal carousel consists of a fixed number of adjacent storage columns or bays that are mechanically linked to either an overhead or floor mounted drive mechanism to form a complete loop. Each column is divided into a fixed number of storage location or bins which in most applications are constructed of a welded wire frame. Loads consisting of containers or totes may be inserted and retrieved either manually or by an automatic inserter/extractor mechanism. However, rotation of the carousel, whereby a specific storage location is brought to the picking location, is almost always controlled automatically. See also Vertical Carousel , Vertical Lift Module , Rotary Rack , and/or AS/RS .

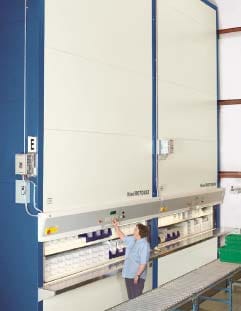

As a storage device, a vertical carousel provides for closed loop automatically controlled rotation of the basic storage unit, which in this case may be a shelf that can be subdivided into multiple bin locations. However, a shelf or a given vertical position need not be divided in order to handle large items such as a bolt of fabric or a roll of carpet. Because storage is vertical, such systems are popular when conserving floor space. Although automatic insertion and extraction of individual items or loads is possible, it is not as common as it is with horizontal carousel applications. See also Horizontal Carousels and/or AS/RS .

Substantial growth presented challenges to this manufacturer of fixed point and portable gas detection systems. Rather than build a new facility, automation in their existing plant maximized space, inventory and productivity with the installation of vertical carousels. Mobile carts consumed 300 square feet of floor space. The vertical carousel system reduced that space to just 67 square feet. Production setup time was reduced from 4 hours to 20 minutes. Within a short time, 11 individual vertical units are now in operation in this manufacturing facility.

Headquartered in Mississauga, ON, TSC is a leading interactive, multi-channel retailer, offering a vast assortment of exclusive products and top brand names to customers throughout Canada.

A subsidiary of a worldwide manufacturer of dental products was building a 30,000 square foot warehouse/distribution facility in western NY state. The company had run out of space at their previous facility, which hampered distribution. With the help of 6 vertical carousels working in conjunction with a sophisticated materials handling system, the system is fully integrated from order entry through order picking and shipping.

This document describes the operation, application and benefits resulting from the use of this automated storage and retrieval system.

Automated storage and retrieval systems, are computer-controlled systems that automatically place and retrieve inventory within a distribution facility and they are the key to increasing throughput. But due to some misconceptions, many DC operators believe ASRS isn’t right for their facility.

An ASRS delivers incredible ROI and will actually save you money - both right out of the gate and in the long-term.

An AS/RS may be the solution for you if you’re looking to conserve space, transfer material, and improve profitability in your facility. MHI’s AS/RS Industry Group is your source for information on cutting-edge solutions, best practices, and implementation strategies. In this video, learn about the benefits of AS/RS from clients who have implemented this technology in their own operations.
